ASUS RS720-E12-RS24U 2U Dual Xeon 6 All-NVMe Server Barebone (2700W, 10G)
by
2U dual-socket Xeon 6 barebone with 32 DDR5 DIMM slots, 24 hot-swap NVMe bays, 10 PCIe 5.0/OCP slots and redundant 2700 W power.
- CE
- FCC
$5,500.00
SKU RS720-E12-RS24U-27W10G · 30-day returns

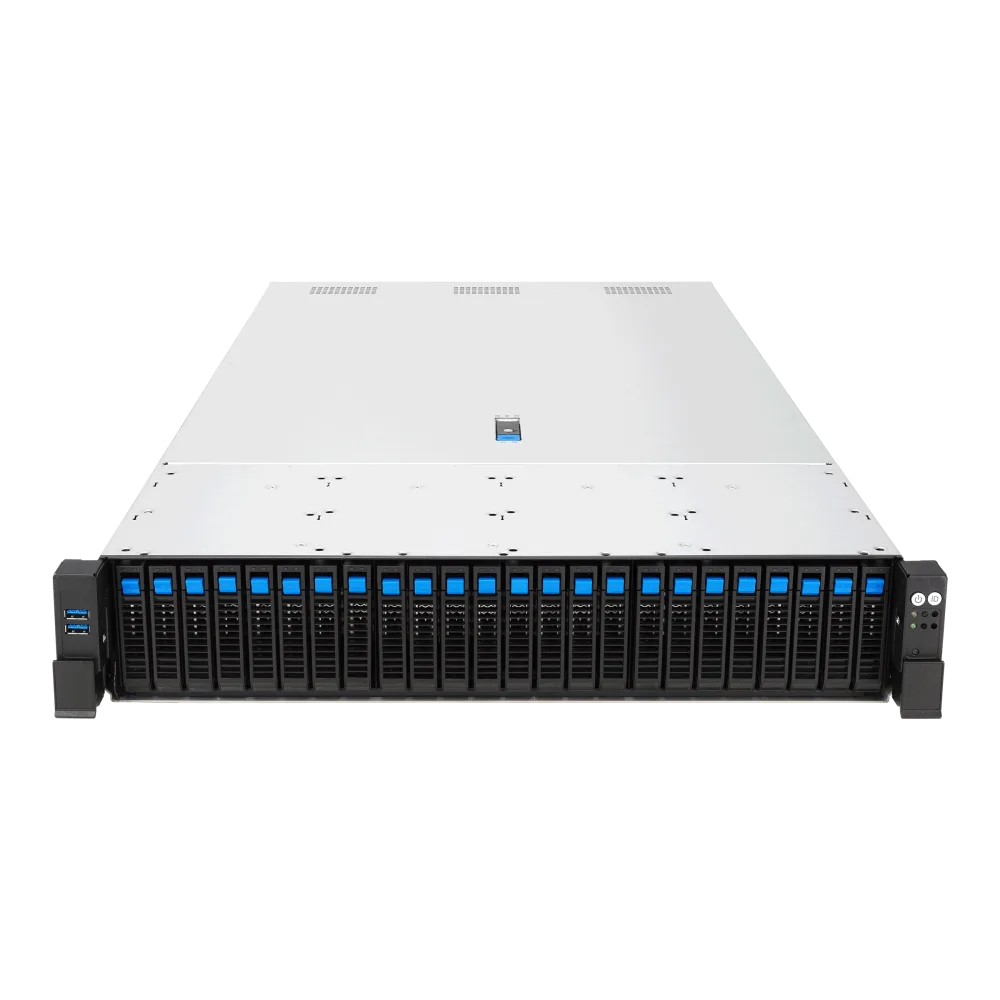

The ASUS RS720-E12-RS24U is a 2U dual-socket rack server barebone for Intel Xeon 6 processors, designed for dense all-flash storage, databases, virtualisation clusters and software-defined infrastructure. This -27W10G SKU is the variant fitted with 1+1 redundant 2700 W power supplies and 10GbE networking.
Highlights
• 32 DDR5 RDIMM slots (16 per CPU), DDR5-6400, up to 8 TB • 24 front 2.5" hot-swap bays for NVMe, or SATA/SAS SSDs via an HBA/RAID card • Two M.2 PCIe 5.0 slots for boot drives • Up to 10 expansion slots: PCIe 5.0 full-length and half-length slots plus two OCP 3.0 • ASMB12-iKVM BMC with dual BMC module for remote management
CPUs, memory and drives are purchased separately, letting you size the system exactly to the workload. Rail kit, front bezel and TPM module are available as options.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
Specifications
| Part number | RS720-E12-RS24U-27W10G |
|---|---|
| Processor | |
| Sockets | 2 x Intel Xeon 6 Scalable processors |
| Memory | |
| Slots / maximum | 32 x DDR5 RDIMM (8-channel per CPU), up to 6400 MHz, max 8 TB |
| Expansion | |
| Slots | Up to 10: 6 x PCIe 5.0 x8 or 3 x PCIe 5.0 x16 (FHFL), 2 x PCIe 5.0 x16 (FHHL), 2 x OCP 3.0 Gen5 x16 |
| Storage | |
| Drive bays | 24 x 2.5" hot-swap NVMe (SATA/SAS SSD via HBA/RAID card) |
| M.2 | 2 x M.2 PCIe 5.0 (2280/2260) |
| Networking | |
| LAN | 1 x dedicated management port; -27W10G SKU ships with 10GbE networking |
| Management | |
| BMC | ASMB12-iKVM (Aspeed AST2600), dual BMC module |
| Power | |
| Power supply | 1+1 redundant 2700 W (this SKU) |
| Physical | |
| Form factor | 2U rackmount |
| Dimensions | 822.16 x 484.65 x 87.3 mm |
| Weight | 17.82 kg net / 21.34 kg gross |
| Compliance | |
| Regulatory | BSMI, CE, CB, RCM, FCC Class A, ISED |
| Warranty | 3-year parts and labor (per Newegg listing) |
Reviews
No reviews yet
Be the first to review this product.
