ASUS RS300-E12-PS4 1U Xeon E-2400 Server Barebone
by
Entry 1U single-socket barebone for Xeon E-2400 / Xeon 6300 with 4 DDR5 ECC UDIMM slots, 4 hot-swap 3.5" bays and ASMB11-iKVM.
- CE
- FCC
$1,099.99
SKU RS300-E12-PS4 · 30-day returns

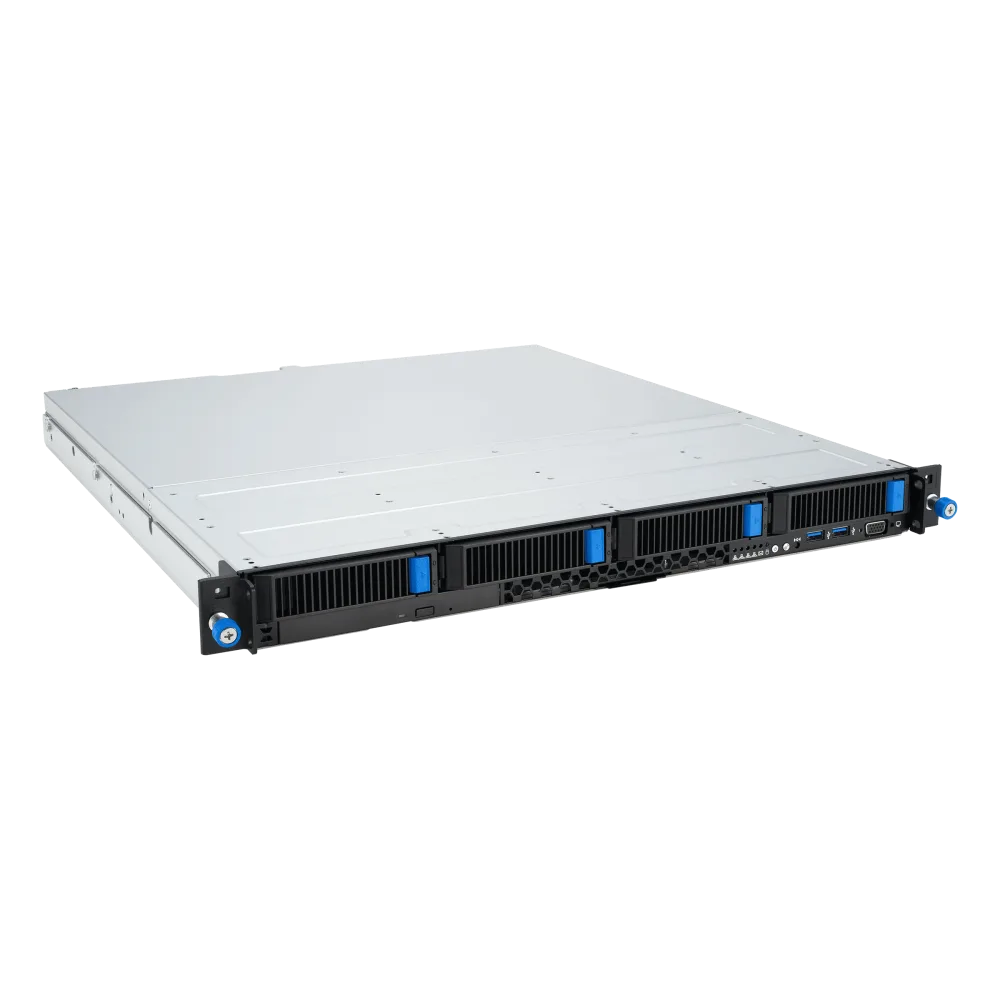

The ASUS RS300-E12-PS4 is a compact 1U rack server barebone built around a single LGA1700 socket and the Intel C262 chipset. It accepts Intel Xeon E-2400 and Xeon 6300 series processors, making it a sensible platform for file serving, small virtualisation hosts, branch-office infrastructure and dedicated application servers.
You supply the CPU, memory and drives; the chassis provides everything else, including a single 350 W 80 PLUS Gold power supply, Aspeed AST2600 graphics and on-board ASMB11-iKVM for out-of-band management.
• 4 DDR5 ECC UDIMM slots (2-channel), up to 128 GB • 4 front hot-swap 3.5" bays for SATA, or SAS/NVMe with optional HBA or upgrade kit • One PCIe 5.0 x16, one PCIe 5.0 x8 and one proprietary PCIe 4.0 x4 slot • Dual Intel I210AT Gigabit ports plus a dedicated management LAN
At under 50 cm deep it fits shallow racks easily and is a cost-effective way to standardise on current-generation DDR5 hardware.
Shipping is charged by the number of items in your order, at the same rates for every destination, and the exact amount is shown at checkout before you pay. Orders ship within 1 business day.
Not happy? Return it within 30 days for a full refund, even if opened.
Specifications
| Part number | RS300-E12-PS4 |
|---|---|
| Processor | |
| Socket | 1 x LGA1700; Intel Xeon E-2400, Xeon 6300 series, Pentium |
| Chipset | Intel C262 |
| Memory | |
| Slots / maximum | 4 x DDR5 4400 ECC UDIMM (2-channel), up to 128 GB |
| Expansion | |
| PCIe slots | 1 x PCIe 5.0 x16 (FH/HL), 1 x PCIe 5.0 x8 (HH/HL), 1 x PCIe 4.0 x4 proprietary |
| Storage | |
| Drive bays | 4 x 3.5" hot-swap (SATA; SAS/NVMe with optional HBA/kit), 8 x SATA 6Gb/s ports |
| Networking | |
| LAN | 2 x Intel I210AT 1GbE + 1 x management LAN |
| Management | |
| BMC | ASMB11-iKVM (Aspeed AST2600), ASUS Control Center Enterprise |
| Power | |
| Power supply | Single 350 W 80 PLUS Gold |
| Physical | |
| Form factor | 1U rackmount |
| Dimensions | 497 x 439.5 x 44 mm |
| Weight | 13.47 kg |
| Compliance | |
| Regulatory | BSMI, CE, CB, FCC Class A |
| Warranty | 3-year parts and labor (per Newegg listing) |
